Single Beam 1 Ton Portable Gantry Crane

Name: Single Beam 1 Ton Portable Gantry Crane
Brand: YEEDA
Price: 1 USD

Quality Single Beam 1 Ton Portable Gantry Crane wholesale

Brand Name : YEEDA

Model Number : YD48-001

Certification : CE

Place of Origin : Zhejiang , China

MOQ : 20 pcs

Payment Terms : T/T

Supply Ability : 1000PCS/MONTH

Delivery Time : 30-45DAYS

Packaging Details : Plywood Crate

Model No. : YD48-001

Name : Portable Gantry Crane Adjustable 1tonne

Capacity : 1 Tonne

Material : Steel

Crane type : Single Beam Light Duty Gantry Crane

Color : Red,Black, customized color acceptable

Max. Lifting Height : 3600mm

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Food & Beverage

Moving Method : Hand push

Crane feature : Adjustable Height

N.W./G.W. : 124/144kgs

Package Size : 227x44x34 cm

Shipping Package : wooden Box

Contact Now

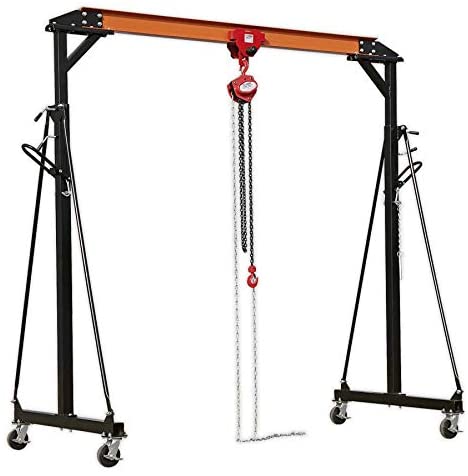

1 Tonne Portable Gantry Adjustable Crane for Garage Workshop Equipment

Ideal for workshops/garages where level lifting is essential. Fitted with four swivel locking castors. Gantry crane is NOT to be moved while loaded. All steel construction with 'I-beam' cross member for added strength. Height adjustable from 2400 to 3600mm in 100mm increments. Ideal for maintenance, manufacturing, repairs and other material handling tasks. Quick assembly and disassembly for easy transport within a workplace or from site to site. Lifting tackle not included.

Features:

Portable adjustable gantry crane is ideal for shops where level lifting is essential
Four swivel locking castors
All steel construction
'I' beam cross member for added strength
Ideal for maintenance, manufacturing, repairs and other material-handling tasks
Quick assembly and disassembly for easy transport within a workplace or from site to site
Gantry crane is NOT to be moved while loaded
Lifting tackle not included

Detail Specification:

Model No	Capacity	Min. Height	Max. Height	Post Width	Gear Number	Adjust size of each
YD48-001	1 ton	2395 mm	3595 mm	3595 mm	12	100 mm

Beam Size	Product Size(WxDxH)	N.W.:/G.W.:	Package Size	20ft cntr/MOQ
120x74x2200 mm	3120x1200x2515 mm	124/144 kg	227x44x34 cm	60pcs/30PCS

Single Beam 1 Ton Portable Gantry Crane
